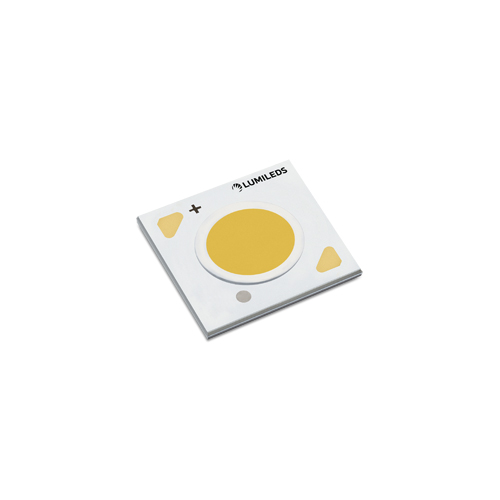

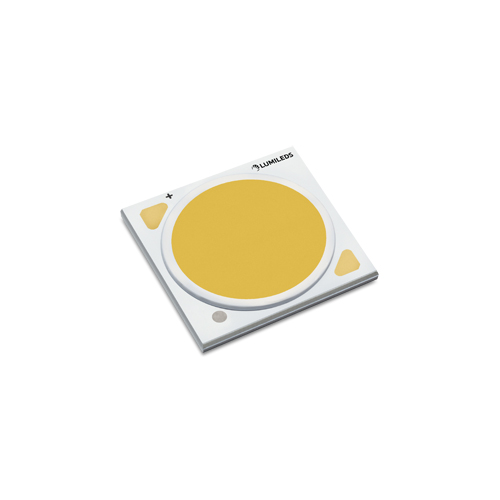

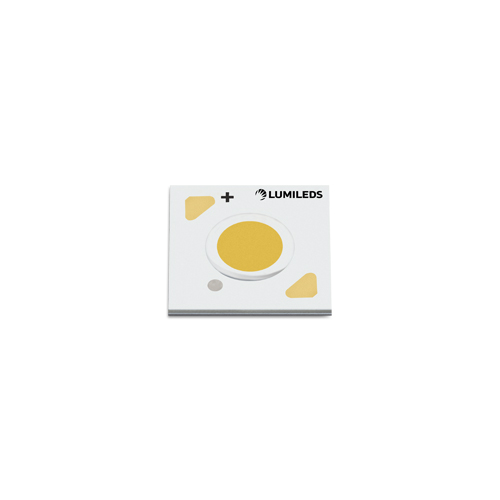

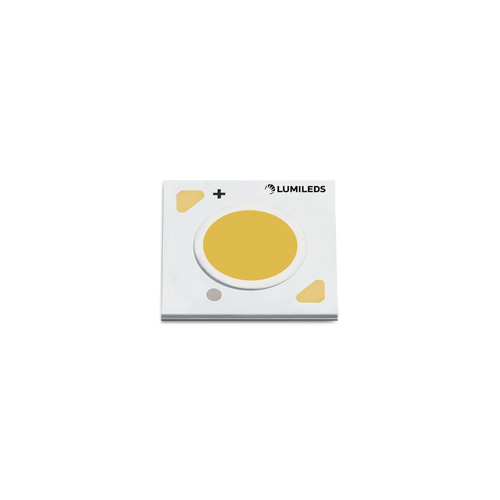

LUXEON CX Plus CoB 采用標準封裝，共含六款產品，涵蓋 500 至 7,000 流明的流明封裝。得益于其業界領先的熱阻與堅固的基板材料，CX Plus CoB 使溫度更低、效率更高的燈具成為了可能。LUXEON CX Plus CoB 從現有生態系統中受益，實現快速即時的設計，同時保留現有光學器件、夾具及文件。
LUXEON CX Plus CoB product performance at test current, Tj=85°C
| PRODUCT | NOMINAL CCT | MINIMUM CRI |
LUMINOUS FLUX (LM) |
TYPICAL LUMINOUS EFFICACY (LM/W) |
TEST CURRENT (MA) |
LES (MM) | PART NUMBER | |
|---|---|---|---|---|---|---|---|---|
| MINIMUM | TYPICAL | |||||||
| LUXEON CoB S01 | 2200K | 80 | 384 | 426 | 124 | 100 | 6 | L2C4-2780-S01E0600 |
| 3000K | 80 | 396 | 440 | 128 | 100 | 6 | L2C4-3080-S01E0600 | |
| 3500K | 80 | 412 | 458 | 133 | 100 | 6 | L2C435780-S01E0600 | |
| 4000K | 80 | 432 | 480 | 139 | 100 | 6 | L2C4-4080-S01E0600 | |
| 5000K | 80 | 432 | 480 | 139 | 100 | 6 | L2C4-5080-S01E0600 | |
| 2700K | 90 | 321 | 356 | 103 | 100 | 6 | L2C4-2790-S01E0600 | |
| 3000K | 90 | 337 | 374 | 108 | 100 | 6 | L2C4-3090-S01E0600 | |
| 3500K | 90 | 367 | 408 | 118 | 100 | 6 | L2C4-3590-S01E0600 | |
| 4000K | 90 | 374 | 416 | 121 | 100 | 6 | L2C4-4090-S01E0600 | |
| LUXEON CoB M02 | 2700K | 80 | 793 | 881 | 128 | 200 | 9 | L2C4-2780-M02E0900 |
| 3000K | 80 | 834 | 927 | 134 | 200 | 9 | L2C4-3080-M02E0900 | |
| 3500K | 80 | 851 | 946 | 137 | 200 | 9 | L2C4-3580-M02E0900 | |
| 4000K | 80 | 885 | 983 | 142 | 200 | 9 | L2C4-4080-M02E0900 | |
| 5000K | 80 | 876 | 973 | 141 | 200 | 9 | L2C4-5080-M02E0900 | |
| 2700K | 90 | 656 | 729 | 106 | 200 | 9 | L2C4-2790-M02E0900 | |
| 3000K | 90 | 689 | 765 | 111 | 200 | 9 | L2C4-3090-M02E0900 | |
| 3500K | 90 | 744 | 826 | 120 | 200 | 9 | L2C4-3590-M02E0900 | |
| 4000K | 90 | 765 | 851 | 123 | 200 | 9 | L2C4-4090-M02E0900 | |
| LUXEON CoB M03 | 2700K | 80 | 1356 | 1507 | 124 | 200 | 9 | L2C4-2780-M03E0900 |
| 3000K | 80 | 1400 | 1555 | 128 | 350 | 9 | L2C4-3080-M03E0900 | |
| 3500K | 80 | 1456 | 1618 | 133 | 350 | 9 | L2C4-3580-M03E0900 | |
| 4000K | 80 | 1499 | 1666 | 137 | 350 | 9 | L2C4-4080-M03E0900 | |
| 5000K | 80 | 1499 | 1666 | 137 | 350 | 9 | L2C4-5080-M03E0900 | |
| 2700K | 90 | 1123 | 1247 | 102 | 350 | 9 | L2C4-2790-M03E0900 | |
| 3000K | 90 | 1190 | 1322 | 109 | 350 | 9 | L2C4-3090-M03E0900 | |
| 3500K | 90 | 1247 | 1386 | 114 | 350 | 9 | L2C4-3590-M03E0900 | |
| 4000K | 90 | 1297 | 1441 | 118 | 350 | 9 | L2C4-4090-M03E0900 | |
| LUXEON CoB L04 | 3000K | 80 | 1845 | 2050 | 130 | 450 | 12 | L2C4-3080-L04E1200 |
| 3500K | 80 | 1920 | 2133 | 135 | 450 | 12 | L2C4-3580-L04E1200 | |
| 4000K | 80 | 1976 | 2196 | 139 | 450 | 12 | L2C4-4080-L04E1200 | |
| 5000K | 80 | 1976 | 2196 | 139 | 450 | 12 | L2C4-5080-L04E1200 | |
| 3000K | 90 | 1568 | 1743 | 111 | 450 | 12 | L2C4-3090-L04E1200 | |
| 3500K | 90 | 1661 | 1845 | 117 | 450 | 12 | L2C4-3590-L04E1200 | |
| 4000K | 90 | 1694 | 1882 | 119 | 450 | 12 | L2C4-4090-L04E1200 | |
| LUXEON CoB L05 | 3000K | 80 | 2313 | 2570 | 134 | 550 | 12 | L2C4-3080-L05E1200 |
| 3500K | 80 | 2360 | 2622 | 137 | 550 | 12 | L2C4-3580-L05E1200 | |
| 4000K | 80 | 2406 | 2673 | 140 | 550 | 12 | L2C4-4080-L05E1200 | |
| 5000K | 80 | 2406 | 2673 | 140 | 550 | 12 | L2C4-5080-L05E1200 | |
| 3000K | 90 | 1928 | 2142 | 112 | 550 | 12 | L2C4-3090-L05E1200 | |
| 3500K | 90 | 2041 | 2268 | 118 | 550 | 12 | L2C4-3590-L05E1200 | |
| 4000K | 90 | 2082 | 2313 | 121 | 550 | 12 | L2C4-4090-L05E1200 | |
| LUXEON CoB L08 | 2700K | 80 | 3206 | 3563 | 128 | 800 | 14 | L2C4-2780-L08E1400 |
| 3000K | 80 | 3375 | 3750 | 135 | 800 | 14 | L2C4-3080-L08E1400 | |
| 3500K | 80 | 3443 | 3825 | 137 | 800 | 14 | L2C4-3580-L08E1400 | |
| 4000K | 80 | 3510 | 3900 | 140 | 800 | 14 | L2C4-4080-L08E1400 | |
| 5000K | 80 | 3510 | 3900 | 140 | 800 | 14 | L2C4-5080-L08E1400 | |
| 2700K | 90 | 2734 | 3038 | 109 | 800 | 14 | L2C4-2790-L08E1400 | |
| 3000K | 90 | 2869 | 3188 | 115 | 800 | 14 | L2C4-3090-L08E1400 | |
| 3500K | 90 | 3038 | 3375 | 121 | 800 | 14 | L2C4-3590-L08E1400 | |
| 4000K | 90 | 3038 | 3375 | 121 | 800 | 14 | L2C4-4090-L08E1400 | |
